Ceiling Suspended

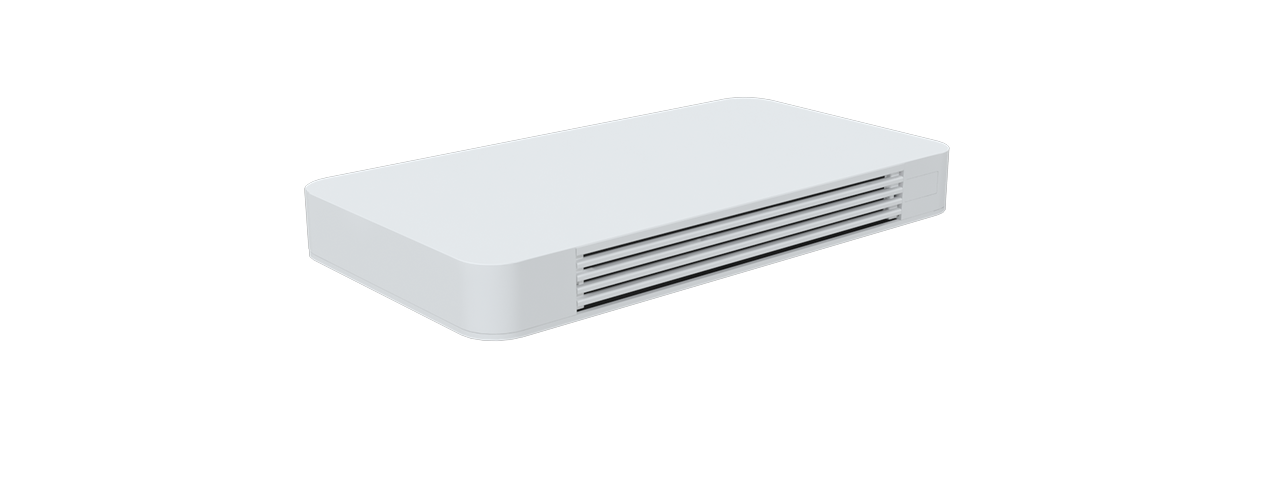

The OSMO Ceiling Suspended fan coil discreetly hangs from the ceiling, making it ideal for applications where an elevated unit is preferred, such as dormitories, budget apartments, hotels, or spaces where accessibility is limited.

With a sleek and slim design, featuring a paintable all-metal cabinet just under five inches high, it seamlessly integrates into the ceiling.

Using DC inverter technology for super quiet and efficient operations, the OSMO Ceiling Suspended is compatible with low-temperature generators like heat pumps, condensing boilers, and integrated systems with solar panels.

Key Features

  • Compact slim cabinet
  • Easy to install
  • Paintable all-metal cabinet
  • Always-on back-lit LED dims after 15 seconds of inactivity
  • Auto-restart
  • Washable filters

Options

  • LCDI power cord
  • Custom factory colors

Operation

  • Cool, heat, dehumidify, and auto
  • Selectable fan speeds, low, med, high, and auto

Connection

  • 2-pipe
  • Can connect to low temperature 4 pipe systems with optional 6-way valve
  • Available in 1/2 or 3/4 connections

Mounting

  • Ceiling

Airflow

  • Supply air straight out (horizontal)
  • Return air is on bottom

Controller Options

  • Wireless remote
  • WiFi app for Android and iPhone
  • Onboard touch controller
  • Centralized control
  • Wall Mounted Basic touch controller
  • Third party thermostat interface
  • BACnet/Modbus interface

Dimensions

  • Model
  • L (in)
  • CS4
  • 29
  • CS8
  • 36.8
  • CS10
  • 44.6
  • CS12
  • 52.5
  • CS14
  • 60.4

Technical Specifications



  • Total (MBh)
  • Sensible (MBh)
  • Water flow (GPM)
  • Pressure (Ft H2O)

CS4

  • 3.1
  • 2.5
  • 41.5
  • 4.0

CS8

  • 7.2
  • 5.9
  • 96.4
  • 2.7

CS10

  • 9.6
  • 7.2
  • 127.6
  • 5.7

CS12

  • 11.3
  • 9.2
  • 150.0
  • 6.0

CS14

  • 12.7
  • 9.9
  • 168.5
  • 7.1



  • Capacity (MBh)
  • Water flow (GPM)
  • Pressure (Ft H2O)

CS4

  • 3.5
  • 46.2
  • 3.0

CS8

  • 7.5
  • 100.4
  • 3.1

CS10

  • 10.3
  • 137.1
  • 6.4

CS12

  • 13.0
  • 173.0
  • 7.1

CS14

  • 14.7
  • 196.3
  • 7.8



  • High (CFM)
  • Medium (CFM)
  • Low (CFM)
  • Static pressure (In W.C.)

CS4

  • 86
  • 53
  • 29
  • 0.04

CS8

  • 173
  • 124
  • 69
  • 0.04

CS10

  • 258
  • 187
  • 106
  • 0.05

CS12

  • 334
  • 241
  • 145
  • 0.05

CS14

  • 390
  • 282
  • 154
  • 0.05



  • Coil Volume (Gal)
  • Maximum operating (PSI) Max. operating (PSI)
  • Hydraulic connections (In) connections (In)

CS4

  • 0.1
  • 145
  •

CS8

  • 0.2
  • 145
  •

CS10

  • 0.3
  • 145
  • Choice of 1/2 or 3/4

CS12

  • 0.4
  • 145
  •

CS14

  • 0.5
  • 145
  •   Choice of 1/2 or 3/4



  • Power supply voltage (V/ph/Hz)
  • Maximum draw (W)
  • Maximum current input (A)
  • Minimum draw (W)

CS4

  • 230/1/60 ​
  • 11
  • 0.11
  • 5

CS8

  • 230/1/60 ​
  • 19
  • 0.16
  • 4

CS10

  • 230/1/60 ​
  • 20
  • 0.18
  • 6

CS12

  • 230/1/60 ​
  • 29
  • 0.26
  • 5

CS14

  • 230/1/60
  • 33
  • 0.28
  • 5



  • High (dB(A))
  • Medium (dB(A))
  • Low (dB(A))

CS4

  • 41
  • 33
  • 24

CS8

  • 42
  • 34
  • 25

CS10

  • 44
  • 34
  • 26

CS12

  • 46
  • 35
  • 26

CS14

  • 47
  • 38
  • 28



  • Length (In)
  • Height (In)
  • Depth (In)
  • Net weight (Lb)

CS4

  • 28.9
  • 22.8
  • 4.9
  • 37.4

CS8

  • 36.8
  • 22.8
  • 4.9
  • 44.0

CS10

  • 44.7
  • 22.8
  • 4.9
  • 50.6

CS12

  • 52.6
  • 22.8
  • 4.9
  • 57.2

CS14

  • 60.4
  • 22.8
  • 4.9
  • 63.8
