Controllers

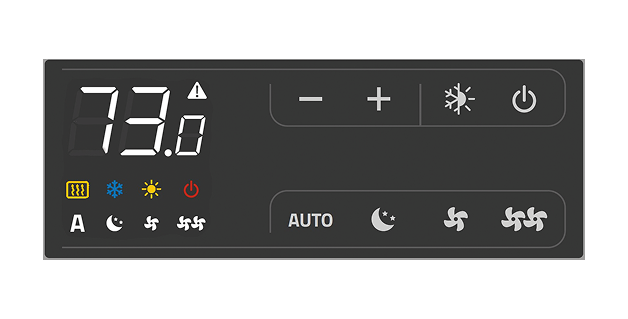

Onboard Touch Controller

The integrated touch controller offers easy-to-use controls of mode, fan speed, set point and a dimmable screen for nighttime on all OSMO console units. This controller is only available for console and wall mounted units.

  • Touch controller
  • Always-on display
  • Option to dim when the room gets dark
  • Fan Controls Include: Low, Medium, High, and Auto
  • Modes include: Cool, Heat, Dehumidify, and Fan Only
  • Fresh air on/off
  • Fahrenheit or Celsius in single degree increments
  • Sleep mode
  • Used for programing special features

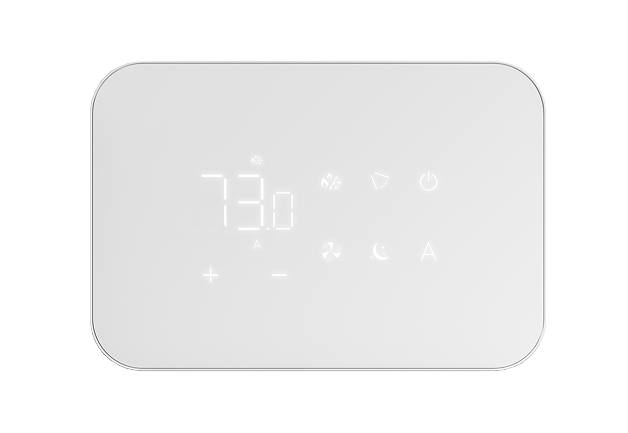

Wall-Mounted Touch Controller

The Wall-Mounted touch controller is simple and easy to use. The sleek design and low profile easily blend into any decor. The LED display dims after 15 seconds, making it ideal for any room, especially a bedroom.

Note: This controller requires a gateway board (included) which must be field installed and connected inside the OSMO by an electrician or technician and takes approximately 15 minutes to install.

  • Surface Wall Mounted
  • Sleek touch controller
  • Always-on back-lit LED dims after 15 seconds of inactivity
  • Modes include: Cool, Heat, Dehumidify, and Fan Only
  • Fan controls Include: Low, Medium, High, and Auto
  • Fahrenheit or Celsius in single degree increments
  • Louver control
  • Sleep mode
  • Mounting: Junction box
  • Materials: White Matte plastic frame, glass front
  • Dimensions: W: 4.41” x H: 2.35” x D: 0.15”
  • Weight: 0.5 lb
  • Connection: Shielded 4 conductor 18 AWG wire with a maximum 40’ run
  • Included parts: Wall-Mounted Touch Controller and Interface to OSMO
  • 3-year limited warranty

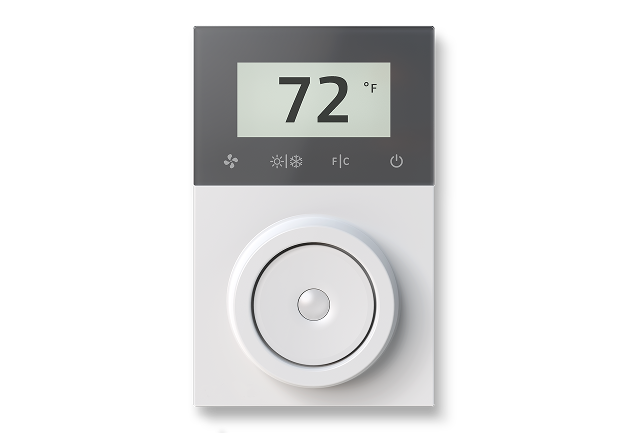

E-Paper controller for OSMO EOS

The E-paper Controller, designed for wall mounting, is an ideal choice for hotels, dormitories, and similar properties seeking centralized control. It seamlessly integrates with the OSMO EOS, providing comprehensive control, optimization, and reporting capabilities. Equipped with an integrated occupancy sensor, it can be wired or wirelessly connected to OSMO fan coils. The user-friendly commands make it easy to operate.

  • E-paper display
  • Integrated occupancy sensor with 94 degree beam width
  • Surface Wall Mounted
  • Sleek design
  • 7 relays
  • Modes include: Cool, Heat, Dehumidify, and Fan Only
  • Fan controls Include: Low, Medium, High, and Auto
  • Humidity control
  • Fahrenheit or Celsius in single degree increments
  • Night mode
  • Mounting: Surface mounted Materials: White Matte plastic frame, glass front, plastic touch controller
  • Dimensions: W: 3.0” x H: 4.73” x D: 1.32”
  • Weight: 0.5 lb
  • Connection: wired or wireless 900 MHz frequency with 2 “AAA” batteries
  • Included parts: E-Paper Controller and Interface to OSMO
  • 3-year limited warranty

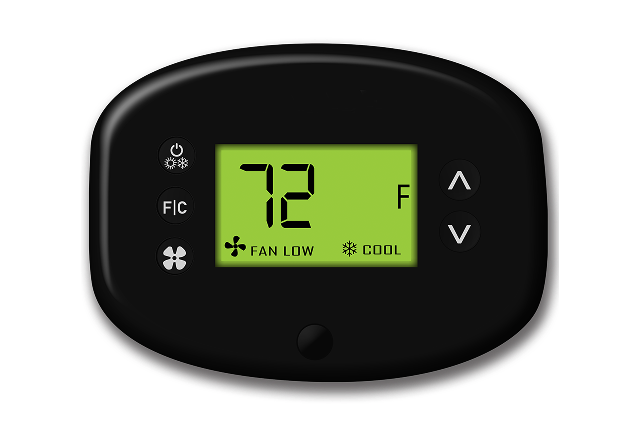

Simple Controller for OSMO EOS

The Simple Controller stands out as the easiest-to-use option, perfect for applications where simplicity is paramount. Available in black or white, this controller features an LCD display with physical buttons and seamlessly integrates with OSMO EOS, providing comprehensive control, optimization, and reporting capabilities. It includes an integrated occupancy sensor and can connect either through wiring or wireless to the OSMO Fan coils.

  • Available in black or white
  • LED display
  • Physical buttons for temp up and down, on/off, heat/cool and fan speed
  • Integrated occupancy sensor with 94 degree beam width
  • Surface Wall Mounted
  • 6 relays
  • Modes include: Cool, Heat, Dehumidify, and Fan Only
  • Fan controls Include: Low, Medium, High, and Auto
  • Humidity control
  • Fahrenheit or Celsius in single degree increments
  • Mounting: Surface mounted Materials: Black Matte plastic frame
  • Dimensions: W: 5.5” x H: 4.0” x D: 0.9”
  • Weight: 0.5 lb
  • Connection: wired or wireless 900 MHz frequency with 2 “AA” batteries
  • Included parts: Simple Controller and Interface to OSMO
  • 3-year limited warranty

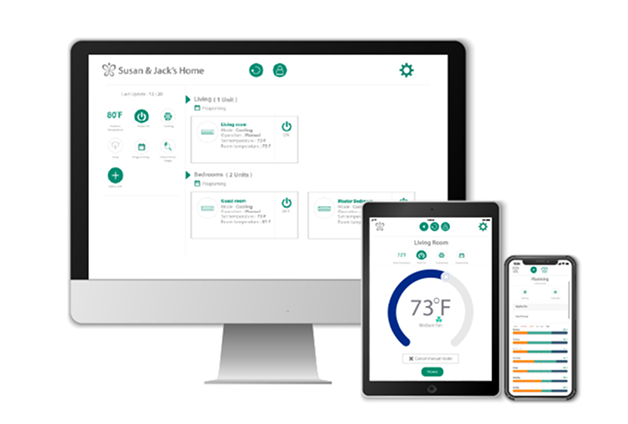

Android / iOS / PC app

The Ephoca app for Android, iOS, and PC devices enables full functionality of all modes, fan speed, temperature setting, and a comprehensive seven-day programmable timer when connected to the Internet. The app also allows groups to control multiple units as a single unit, simplifying operations. Multiple users can be connected to each OSMO unit.

  • Easy and intuitive use
  • Secure
  • 7-day program with multiple independent schedules per day
  • Secure
  • Fan Controls Include: Low, Medium, High, and Auto
  • Modes include: Cool, Heat, Dehumidify, and Fan Only
  • Fresh air on/off
  • Fahrenheit or Celsius in single degree increments
  • Louver control
  • Sleep mode
  • Control units individual or as a group
  • View all units at one time
  • Compatible with Android, iOS, and PC
  • Internet connection required for timer and remote control

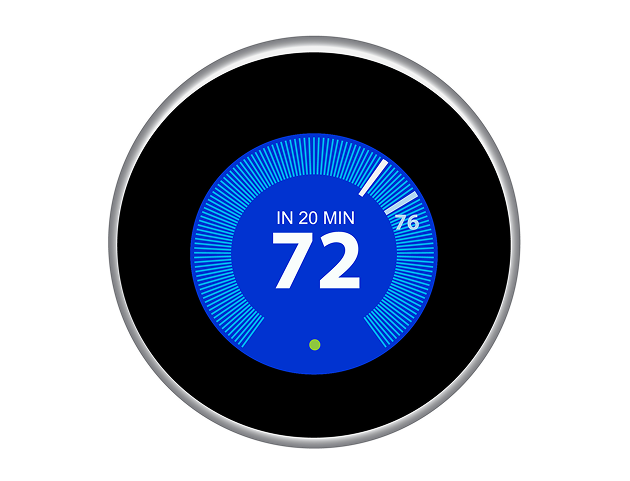

Third Party Gateway

The third-party gateway offers the ability to control OSMO fan coils with any standard or smart thermostat.

Note: This controller requires a gateway board (included) which must be field installed and connected inside the OSMO Fan coil by an electrician or technician and takes approximately 15 minutes to install.

  • Enables all the benefits of a smart thermostat such as Nest™, Ecobee™ etc. for timers, controls, etc.
  • Included 24V power supply
  • Connections to thermostats include: R, C, Y, W, G1, G2, G3 and 24V power terminals
  • Dimensions: W: 2.65’ x L: 3.54” x D: 1.5”
  • Weight: 0.5 lb
  • Gateway mounts inside OSMO
  • Included parts: Third-party gateway and Interface to OSMO
  • 3-year limited warranty
