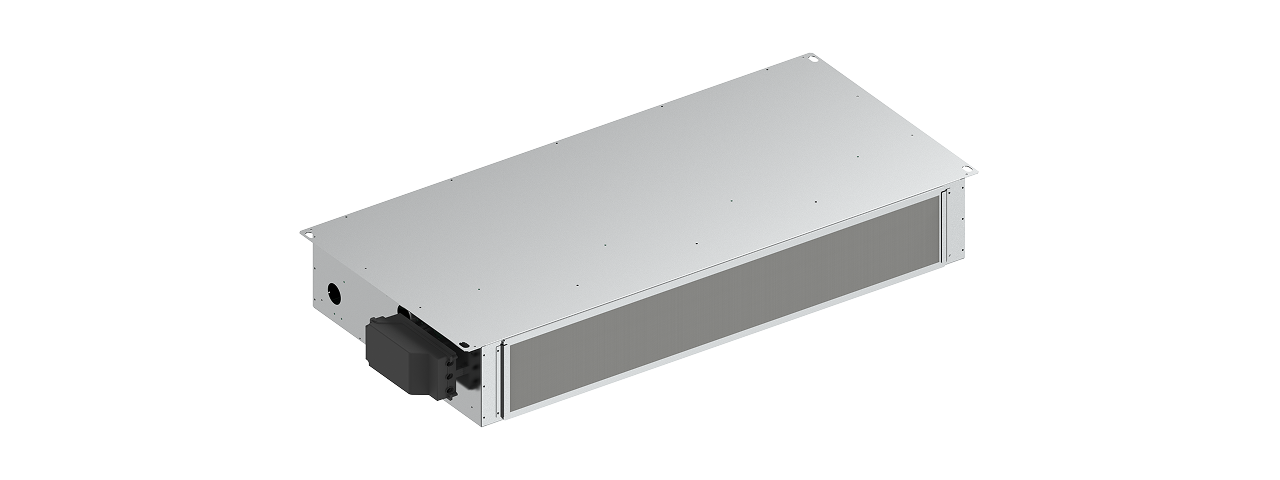

Horizontal Ducted

OSMO Horizontal Ducted fan coils can be discreetly installed above a false ceiling or closet for the highest level of aesthetics, where only a supply and return grille are visible.

Utilizing DC inverter technology, the OSMO Horizontal Ducted fan coil features a super quiet tangential fan within a specialized structure that minimizes vibration, optimizing the fan. It is compatible with low-temperature generators like heat pumps, condensing boilers, and integrated systems with solar panels.

Achieving and maintaining the desired temperature swiftly and silently through continuous automatic modulation of the fan, the OSMO Horizontal Ducted fan coil provides efficient and unobtrusive heating and cooling.

Key Features

  • Compact unit - under 10-inches deep
  • Easy to install
  • High ESP for internal ducting
  • Bottom or rear returns
  • Auto-restart
  • Washable filters

Operation

  • Cool, heat, dehumidify, and auto
  • Selectable fan speeds, low, med, high, and auto

Connection

  • 2-pipe
  • Can connect to low temperature 4 pipe systems with optional 6-way valve
  • Available in 1/2 or 3/4 connections

Mounting

  • Ceiling
  • Underfloor

Airflow

  • Available 0.6" WC for internal ducting and grilles

Included controls

  • WiFi app for Android and iPhone
  • Centralized control
  • Wall Mounted Basic touch controller
  • Third party thermostat interface
  • BACnet/Modbus interface

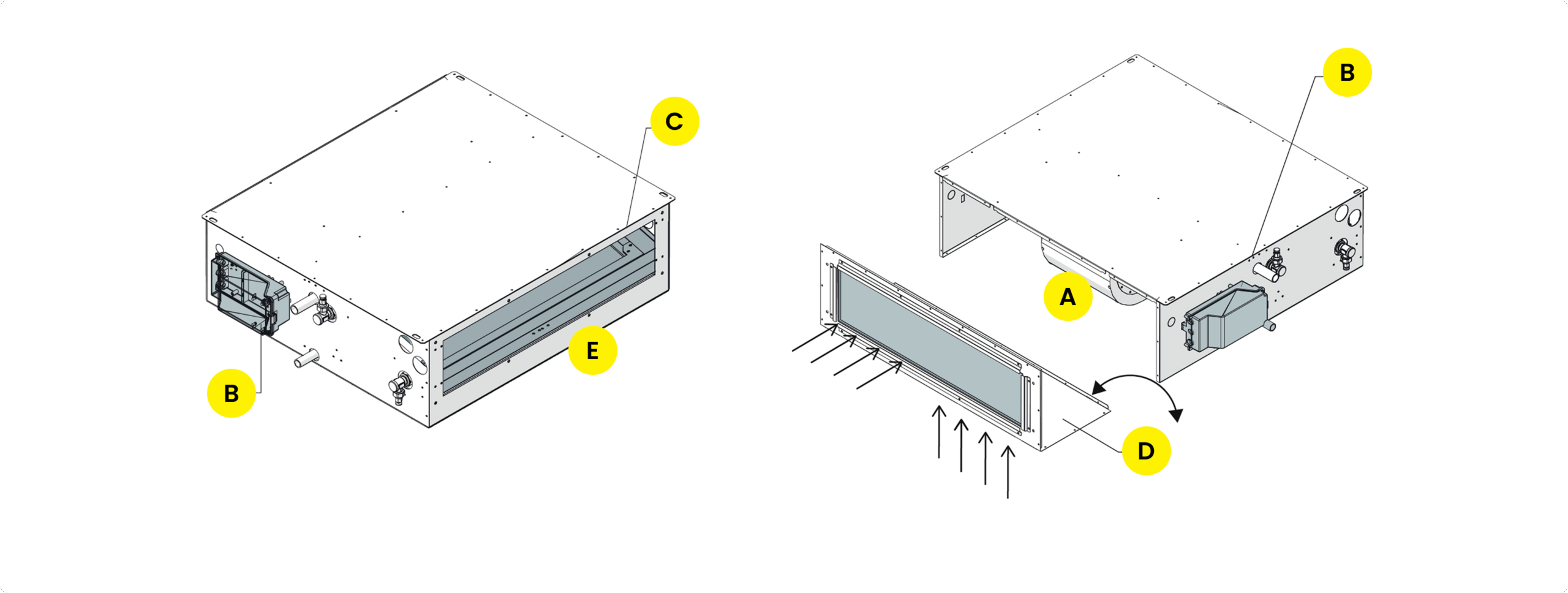

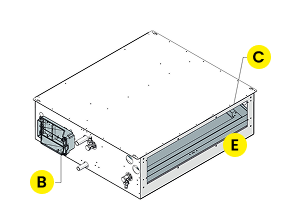

The Smart Horizontal Fan Coil

Fan

The unit is equipped with a centrifugal fan and low consumption DC inverter motor and integrated control.

Electrical box

Electrical box excluded from the air flow, with electronic main board control.

Heat Exchanger

Copper aluminum water to air heat exchanger with hydrophilic treatment fins.

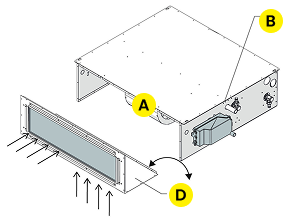

Reversible return with air filter

The return intake air can be from the bottom or rear.

Horizontal Condensate Tray

Allows the collection of condensate.

Technical Specifications



  • Total (MBh)
  • Sensible (MBh)
  • Water flow (GPM)
  • Pressure (Ft H2O)

HD6

  • 4.8
  • 3.6
  • 71.3
  • 1.7

HD8

  • 7.2
  • 5.1
  • 107.0
  • 2.7

HD10

  • 8.9
  • 7.2
  • 134.7
  • 5.7

HD12

  • 11.3
  • 8.4
  • 161.1
  • 3.7

HD20

  • 15.2
  • 10.9
  • 212.7
  • 4.7



  • Capacity (MBh)
  • Water flow (GPM)
  • Pressure (Ft H2O)

HD6

  • 5.6
  • 81.9
  • 2.0

HD8

  • 7.2
  • 116.2
  • 3.0

HD10

  • 9.8
  • 142.7
  • 6.0

HD12

  • 12.7
  • 192.8
  • 4.3

HD20

  • 17.7
  • 232.5
  • 5.0



  • High (CFM)
  • Medium (CFM)
  • Low (CFM)
  • Static pressure (In W.C.)

HD6

  • 171
  • 118
  • 53
  • 0.4

HD8

  • 230
  • 171
  • 82.4
  • 0.4

HD10

  • 324
  • 230
  • 112
  • 0.5

HD12

  • 400
  • 265
  • 135
  • 0.4

HD20

  • 512
  • 359
  • 147
  • 0.6



  • Coil Volume (Gal)
  • Maximum operating (PSI) Max. operating (PSI)
  • Hydraulic connections (In) connections (In)

HD6

  • 0.2
  • 145
  •

HD8

  • 0.3
  • 145
  •

HD10

  • 0.4
  • 145
  • Choice of 1/2 or 3/4

HD12

  • 0.5
  • 145
  •

HD20

  • 0.6
  • 145
  •   Choice of 1/2 or 3/4



  • Power supply voltage (V/ph/Hz)
  • Maximum draw (W)
  • Maximum current input (A)
  • Minimum draw (W)

HD6

  • 230/1/60 ​
  • 80
  • 0.7
  • 22

HD8

  • 230/1/60 ​
  • 140
  • 1.2
  • 38

HD10

  • 230/1/60 ​
  • 160
  • 1.4
  • 42

HD12

  • 230/1/60 ​
  • 160
  • 1.4
  • 45

HD20

  • 230/1/60
  • 230
  • 1.8
  • 50



  • High (dB(A))
  • Medium (dB(A))
  • Low (dB(A))

HD6

  • 43
  • 37
  • 30

HD8

  • 46
  • 39
  • 31

HD10

  • 48
  • 41
  • 34

HD12

  • 49
  • 43
  • 37

HD20

  • 50
  • 45
  • 38



  • Length (In)
  • Height (In)
  • Depth (In)
  • Net weight (Lb)

HD6

  • 23.2
  • 7.3
  • 22.6
  • 66.0

HD8

  • 31.1
  • 7.3
  • 22.6
  • 90.2

HD10

  • 39.0
  • 7.3
  • 22.6
  • 99.0

HD12

  • 46.9
  • 7.3
  • 22.6
  • 118.8

HD20

  • 56.7
  • 7.3
  • 22.6
  • 143.0
