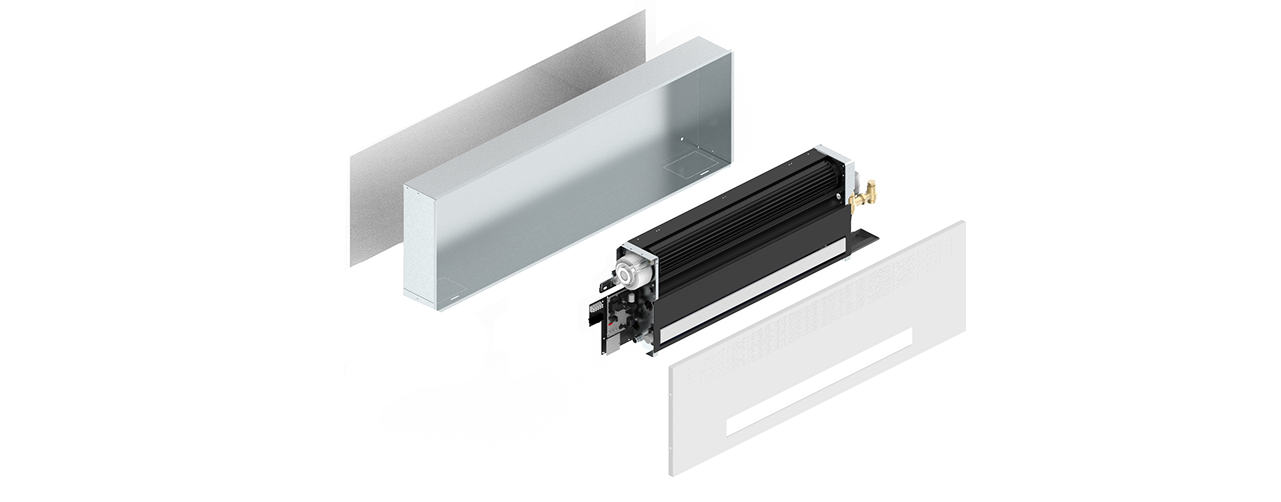

Recessed High Wall

Plaster Frame

The OSMO Recessed High Wall Plaster Frame fan coil offers the highest level of fit and finish for a high wall fan coil.

The plaster frame ensures that only the front panel is visible, providing a clean and slim design with a paintable all-metal cabinet, making it ideal for discerning clients and demanding architects. Utilizing DC inverter technology, the OSMO Recessed High Wall Plaster Frame fan coil offers the highest level of fit and finish for a high wall fan coil.
Fan coil features a super quiet tangential set within a specialized structure that minimizes vibration, while optimizing the fan. It is compatible with low-temperature generators like heat pumps, condensing boilers, and integrated systems with solar panels.

Key Features

  • Fully recessed in the wall
  • Paintable all-metal front panel
  • Auto-restart
  • Washable filters

Options

  • LCDI power cord
  • Custom factory colors

Operation

  • Cool, heat, dehumidify, and auto
  • Selectable fan speeds, low, med, high, and auto

Connection

  • 2-pipe
  • Can connect to low temperature 4 pipe systems with optional 6-way valve
  • Available in 1/2 or 3/4 connections

Mounting

  • Recessed high wall mount

Airflow

  • Supply air managed by electronically controlled louver on the front
  • Return air is on upper front

Controller Options

  • Wireless remote
  • WiFi app for Android and iPhone
  • Centralized control
  • Wall Mounted touch controller
  • Third party thermostat interface
  • BACnet/Modbus interface

Installation

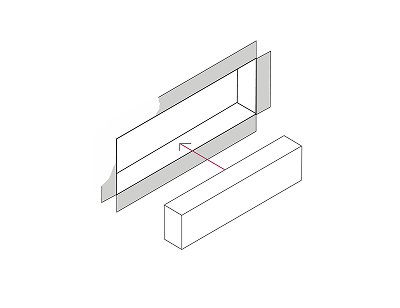

Position the recessed casing in the wall complete with front support panel to prevent deformation of the casing during installation.

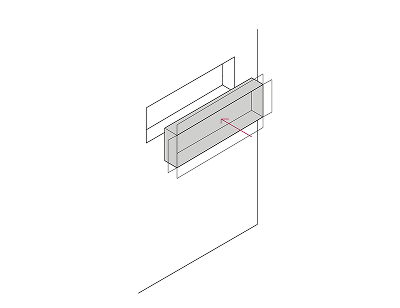

Plaster over the frame. Connect the connections to the system from the back or sides.

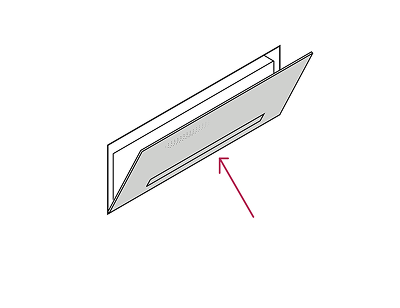

Install the cover panel.

Technical Specifications



  • Total (MBh)
  • Sensible (MBh)
  • Water flow (GPM)
  • Pressure (Ft H2O)

RHP4

  • 4.23
  • 3.34
  • 54.9
  • 3.9

RHP6

  • 5.49
  • 4.33
  • 73.7
  • 1.7

RHP8

  • 6.62
  • 5.19
  • 96.4
  • 1.8



  • Capacity (MBh)
  • Water flow (GPM)
  • Pressure (Ft H2O)

RHP4

  • 5.12
  • 69
  • 5.45

RHP6

  • 6.86
  • 92
  • 2.41

RHP8

  • 7.27
  • 119
  • 2.71



  • High (CFM)
  • Medium (CFM)
  • Low (CFM)
  • Static pressure (In W.C.)

RHP4

  • 134
  • 91
  • 49
  • 0.04

RHP6

  • 195
  • 135
  • 73
  • 0.04

RHP8

  • 259
  • 167
  • 135
  • 0.04



  • Coil Volume (Gal)
  • Maximum operating (PSI) Max. operating (PSI)
  • Hydraulic connections (In) connections (In)

RHP4

  • 0.13
  • 145
  •

RHP6

  • 0.16
  • 145
  • Choice of 1/2 or 3/4

RHP8

  • 0.41
  • 145
  •   Choice of 1/2 or 3/4



  • Power supply voltage (V/ph/Hz)
  • Maximum draw (W)
  • Maximum current input (A)
  • Minimum draw (W)

RHP4

  • 230/1/60 ​
  • 19
  • 0.16
  • 5

RHP6

  • 230/1/60 ​
  • 20
  • 0.18
  • 5

RHP8

  • 230/1/60
  • 29
  • 0.26
  • 5



  • High (dB(A))
  • Medium (dB(A))
  • Low (dB(A))

RHP4

  • 40
  • 33
  • 25

RHP6

  • 41
  • 34
  • 25

RHP8

  • 42
  • 34
  • 26



  • Length (In)
  • Height (In)
  • Depth (In)
  • Net weight (Lb)

RHP4

  • 31.7
  • 12.1
  • 5.0
  • 30.8

RHP6

  • 39.5
  • 12.1
  • 5.0
  • 35.2

RHP8

  • 47.4
  • 12.1
  • 5.0
  • 41.8
