Recessed Wall

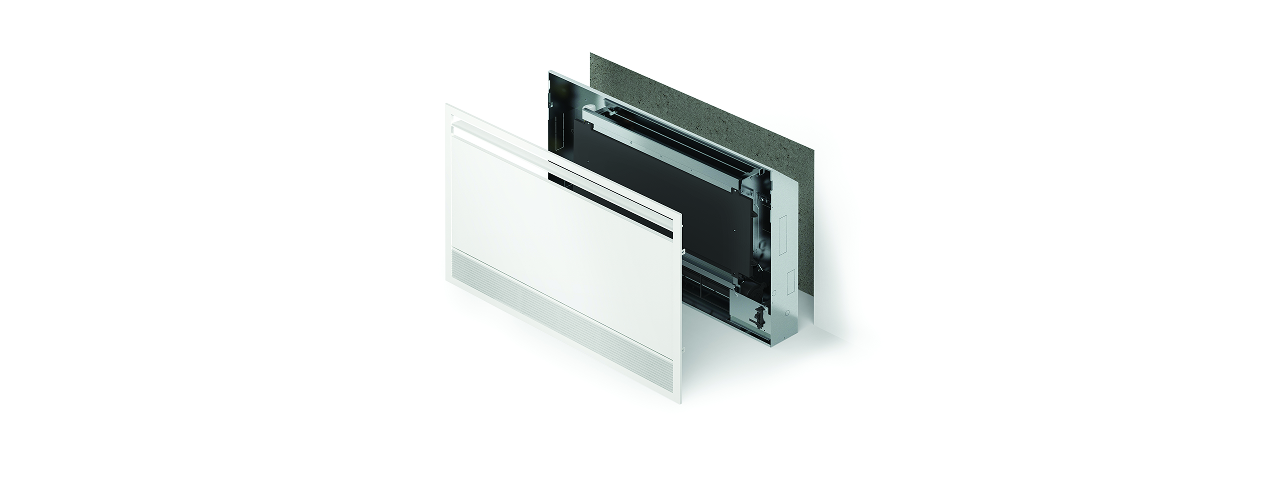

The OSMO Recessed Wall fan coil offers a high level of fit and finish for a low wall fan coil. With the fan coil recessed into the wall only the sleek front panel is visible, providing a clean and slim design with a paintable all metal cabinet, making it ideal for discerning clients and demanding architects.

Utilizing DC inverter technology for super quiet and efficient operations, the OSMO Recessed Wall coil is compatible with low-temperature generators like heat pumps, condensing boilers, and integrated systems with solar panels.

It achieves and maintains the desired temperature swiftly and silently, thanks to the continuous automatic modulation of the fan, delivering efficient and unobtrusive heating.

OSMO Recessed Wall is available in two heights, standard at 23.5“ and low at 15”.

Key Features

  • Easy to install
  • Paintable all-metal cabinet
  • Always-on back-lit LED dims after 15 seconds of inactivity
  • Auto-restart
  • Washable filters

Versions

  • S - Standard (23.5 inches tall)
  • Easy to install - Low (15 inches tall)

Options

  • Legs
  • UVC Sterilizer Lamp
  • Support Legs
  • Back cover panel
  • Motorized return air louver
  • LCDI power cord
  • Custom factory colors

Operation

  • Cool, heat, dehumidify, and auto
  • Selectable fan speeds, low, med, high, and auto

Connection

  • 2-pipe
  • 4-pipe
  • Can connect to low temperature 4 pipe systems with optional 6-way valve
  • Available in 1/2 or 3/4 connections

Mounting

  • Recessed low wall mount

Airflow

  • Supply air angled up (front)
  • Return air is on lower front

Controller Options

  • WiFi app for Android and iPhone
  • Centralized control
  • Wall Mounted Basic touch controller
  • Third party thermostat interface
  • BACnet/Modbus interface

Dimensions

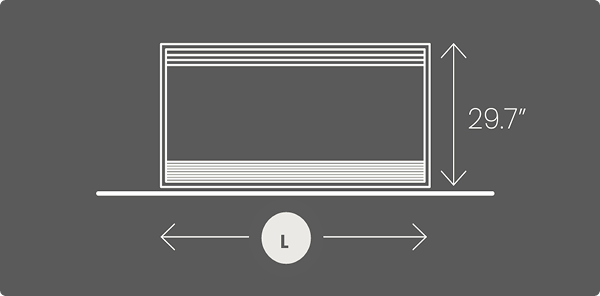

Standard Version

  • Model
  • L (in)
  • RW4S
  • 13.9
  • RW8S
  • 22.7
  • RW10S
  • 30.6
  • RW12S
  • 38.5
  • RW14S
  • 46.3

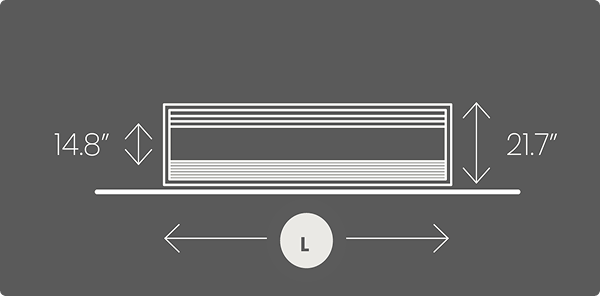

Low Version

  • Model
  • L (in)
  • RW2L
  • 14.9
  • RW4L
  • 22.7
  • RW6L
  • 30.6
  • RW8L
  • 38.5
  • RW10L
  • 46.4

Available in Two Heights

Standard Version

  • Model
  • L (in)
  • Aesthetic panel (in)
  • RW4S
  • 20.6
  • 30.4
  • RW8S
  • 28.5
  • 38.3
  • RW10S
  • 36.4
  • 46.1
  • RW12S
  • 44.3
  • 54
  • RW14S
  • 52.2
  • 61.9

Low Version

  • Model
  • L (in)
  • Aesthetic panel (in)
  • RW2L
  • 20.6
  • 30.4
  • RW4L
  • 28.5
  • 38.3
  • RW6L
  • 36.4
  • 46.1
  • RW8L
  • 44.3
  • 54
  • RW10L
  • 52.2
  • 61.9

Technical Specifications

Standard Height

  • Total (MBh)
  • Sensible (MBh)
  • Water flow (GPM)
  • Pressure (Ft H2O)

Low Height

  • Total (MBh)
  • Sensible (MBh)
  • Water flow (GPM)
  • Pressure (Ft H2O)

RW4S

  • 3.1
  • 2.5
  • 41.5
  • 4.0

RW2L

  • 1.7
  • 1.5
  • 23.2
  • 1.4

RW8S

  • 7.2
  • 5.9
  • 96.4
  • 2.7

RW4L

  • 4.1
  • 3.4
  • 54.9
  • 3.7

RW10S

  • 9.6
  • 7.2
  • 127.6
  • 5.7

RW6L

  • 5.5
  • 4.9
  • 73.7
  • 1.7

RW12S

  • 11.3
  • 9.2
  • 150.0
  • 6.0

RW8L

  • 7.2
  • 6.8
  • 96.4
  • 1.8

RW14S

  • 12.7
  • 9.9
  • 168.5
  • 7.1

RW10L

  • 8.9
  • 8.0
  • 118.1
  • 2.4

Standard Height

  • Capacity (MBh)
  • Water flow (GPM)
  • Pressure (Ft H2O)

Low Height

  • Capacity (MBh)
  • Water flow (GPM)
  • Pressure (Ft H2O)

RW4S

  • 3.5
  • 46.2
  • 3.0

RW2L

  • 2.1
  • 27.7
  • 1.7

RW8S

  • 7.5
  • 100.4
  • 3.1

RW4L

  • 5.2
  • 68.7
  • 5.4

RW10S

  • 10.3
  • 137.1
  • 6.4

RW6L

  • 6.9
  • 92.2
  • 2.4

RW12S

  • 13.0
  • 173.0
  • 7.1

RW8L

  • 8.9
  • 119.1
  • 2.7

RW14S

  • 14.7
  • 196.3
  • 7.8

RW10L

  • 10.6
  • 141.3
  • 3.4

Standard Height

  • High (CFM)
  • Medium (CFM)
  • Low (CFM)
  • Static pressure (In W.C.)

Low Height

  • High (CFM)
  • Medium (CFM)
  • Low (CFM)
  • Static pressure (In W.C.)

RW4S

  • 86
  • 53
  • 29
  • 0.04

RW2L

  • 67
  • 37
  • 21
  • 0.04

RW8S

  • 173
  • 124
  • 69
  • 0.04

RW4L

  • 134
  • 91
  • 49
  • 0.04

RW10S

  • 258
  • 187
  • 106
  • 0.05

RW6L

  • 195
  • 135
  • 73
  • 0.04

RW12S

  • 334
  • 241
  • 145
  • 0.05

RW8L

  • 259
  • 167
  • 81
  • 0.04

RW14S

  • 390
  • 282
  • 154
  • 0.05

RW10L

  • 288
  • 202
  • 98
  • 0.04

Standard Height

  • Coil Volume (Gal)
  • Maximum operating (PSI) Max. operating (PSI)
  • Hydraulic connections (In) connections (In)

Low Height

  • Coil Volume (GPM)
  • Maximum operating (PSI) Max. operating (PSI)
  • Hydraulic connections (In) connections (In)

C4S

  • 0.1
  • 145
  •

C2L

  • 0.1
  • 145
  •

C8S

  • 0.2
  • 145
  •

C4L

  • 0.1
  • 145
  •

C10S

  • 0.3
  • 145
  • Choice of 1/2 or 3/4

C6L

  • 0.2
  • 145
  • Choice of 1/2 or 3/4

C12S

  • 0.4
  • 145
  •

C8L

  • 0.2
  • 145
  •

C14S

  • 0.5
  • 145
  •   Choice of 1/2 or 3/4

C10L

  • 0.2
  • 145
  •   Choice of 1/2 or 3/4

Standard Height

  • Power supply voltage (V/ph/Hz)
  • Maximum draw (W)
  • Maximum current input (A)
  • Minimum draw (W)

Low Height

  • Power supply voltage (V/ph/Hz)
  • Maximum draw (W)
  • Maximum current input (A)
  • Minimum draw (W)

RW4S

  • 230/1/60 ​
  • 11
  • 0.11
  • 5

RW2L

  • 230/1/60 ​
  • 11
  • 0.11
  • 3

RW8S

  • 230/1/60 ​
  • 19
  • 0.16
  • 4

RW4L

  • 230/1/60 ​
  • 19
  • 0.16
  • 4

RW10S

  • 230/1/60 ​
  • 20
  • 0.18
  • 6

RW6L

  • 230/1/60 ​
  • 20
  • 0.18
  • 4

RW12S

  • 230/1/60 ​
  • 29
  • 0.26
  • 5

RW8L

  • 230/1/60 ​
  • 29
  • 0.26
  • 4

RW14S

  • 230/1/60
  • 33
  • 0.28
  • 5

RW10L

  • 230/1/60
  • 33
  • 0.28
  • 5

Standard Height

  • High (dB(A))
  • Medium (dB(A))
  • Low (dB(A))

Low Height

  • High (dB(A))
  • Medium (dB(A))
  • Low (dB(A))

RW4S

  • 41
  • 33
  • 24

RW2L

  • 39
  • 33
  • 24

RW8S

  • 42
  • 34
  • 25

RW4L

  • 40
  • 33
  • 25

RW10S

  • 44
  • 34
  • 26

RW6L

  • 41
  • 34
  • 25

RW12S

  • 46
  • 35
  • 26

RW8L

  • 42
  • 34
  • 26

RW14S

  • 47
  • 38
  • 28

RW10L

  • 43
  • 36
  • 27

Standard Height

  • Length (In)
  • Height (In)
  • Depth (In)
  • Net weight (Lb)

Low Height

  • Length (In)
  • Height (In)
  • Depth (In)
  • Net weight (Lb)

RW4S

  • 20.7
  • 22.7
  • 5.0
  • 19.8

RW2L

  • 20.7
  • 14.8
  • 5.0
  • 15.4

RW8S

  • 28.5
  • 22.7
  • 5.0
  • 26.4

RW4L

  • 28.5
  • 14.8
  • 5.0
  • 17.6

RW10S

  • 36.5
  • 22.7
  • 5.0
  • 33.0

RW6L

  • 36.4
  • 14.8
  • 5.0
  • 19.8

RW12S

  • 44.3
  • 22.7
  • 5.0
  • 39.6

RW8L

  • 44.3
  • 14.8
  • 5.0
  • 22.0

RW14S

  • 52.2
  • 22.7
  • 5.0
  • 46.2

RW10L

  • 52.2
  • 14.8
  • 5.0
  • 26.4
