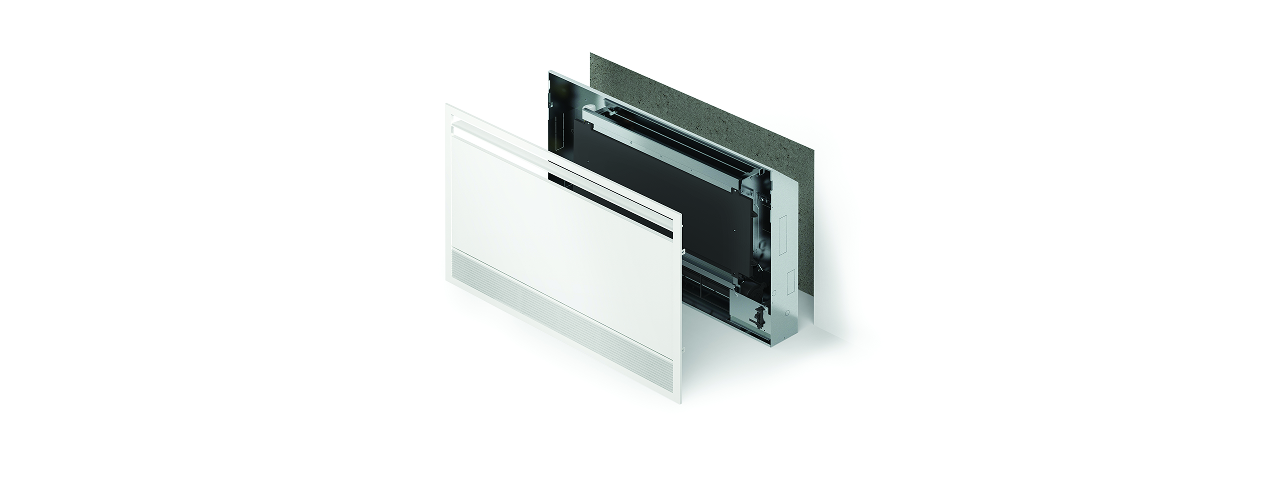

The OSMO Recessed Wall Plaster Frame fan coil offers the highest level of fit and finish for a low wall fan coil. The concealed plaster frame ensures that only the front panel is visible, providing a clean and slim design with a paintable all-metal cabinet, making it ideal for discerning clients and demanding architects.
Utilizing DC inverter technology for super quiet and efficient operations, the OSMO Recessed Wall Plaster Frame is compatible with low-temperature generators like heat pumps, condensing boilers, and integrated systems with solar panels.

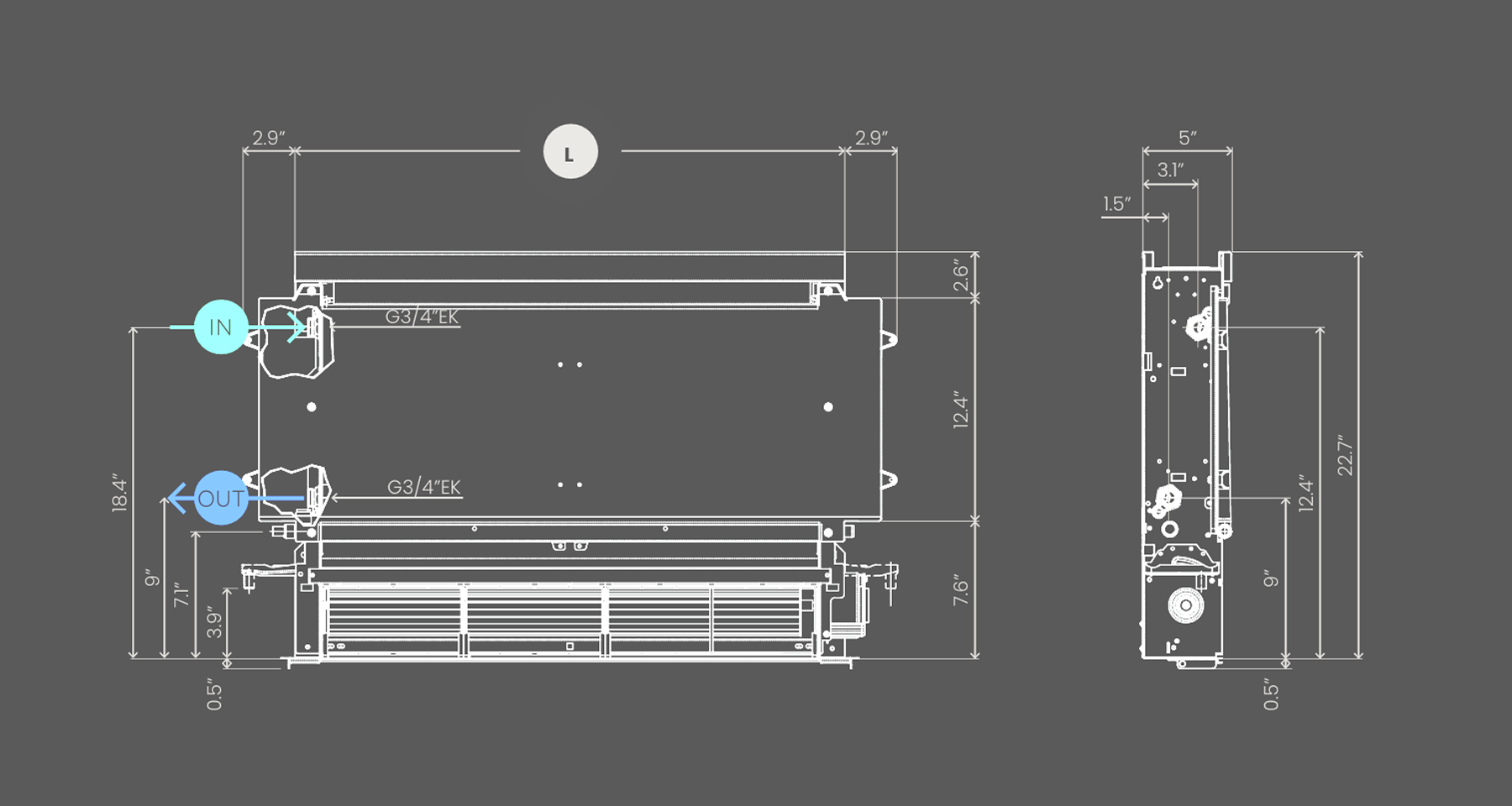

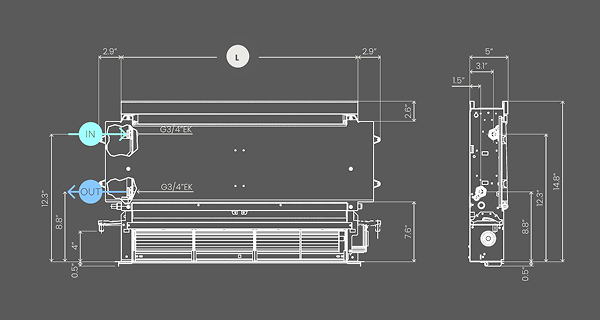

It achieves and maintains the desired temperature swiftly and silently, thanks to the continuous automatic modulation of the fan, delivering efficient and unobtrusive heating. OSMO Recessed Wall Plaster Frame is available in two heights, standard at 23.5” and low at 15”.

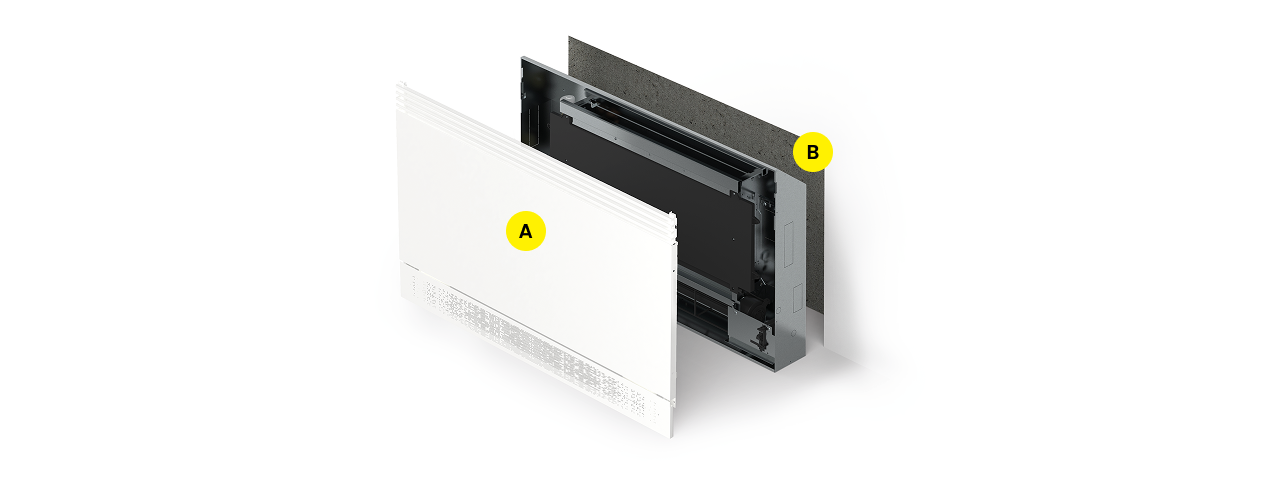

The panel is designed for perfect coupling with the recessed frame of the same size. It consists of a front panel, a removable grille for cleaning the air filters. The central part of the panel is easily removable for quick and complete maintenance of the unit. The aesthetic finishes are of a high standard for perfect integration in the environment. The standard color is white RAL 9003. The cover can be painted.

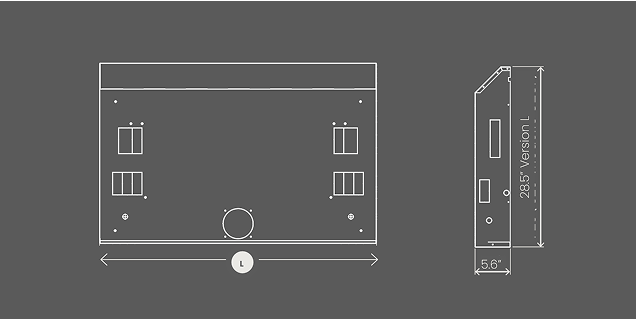

Galvanized steel casing designed to be inserted into walls to house the fan coil. Equipped with the necessary cutouts for the passage of plumbing pipes and electrical cables.
